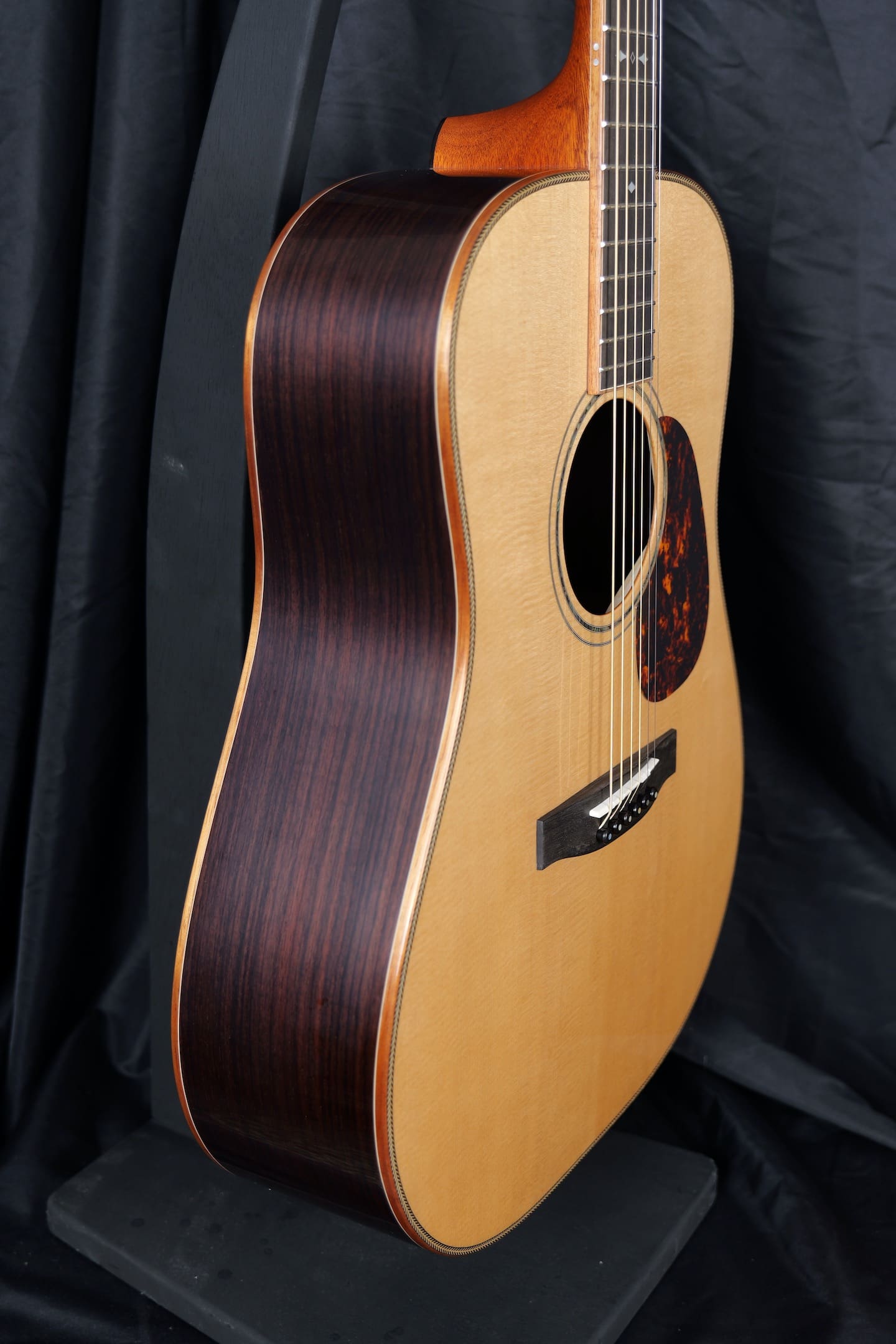

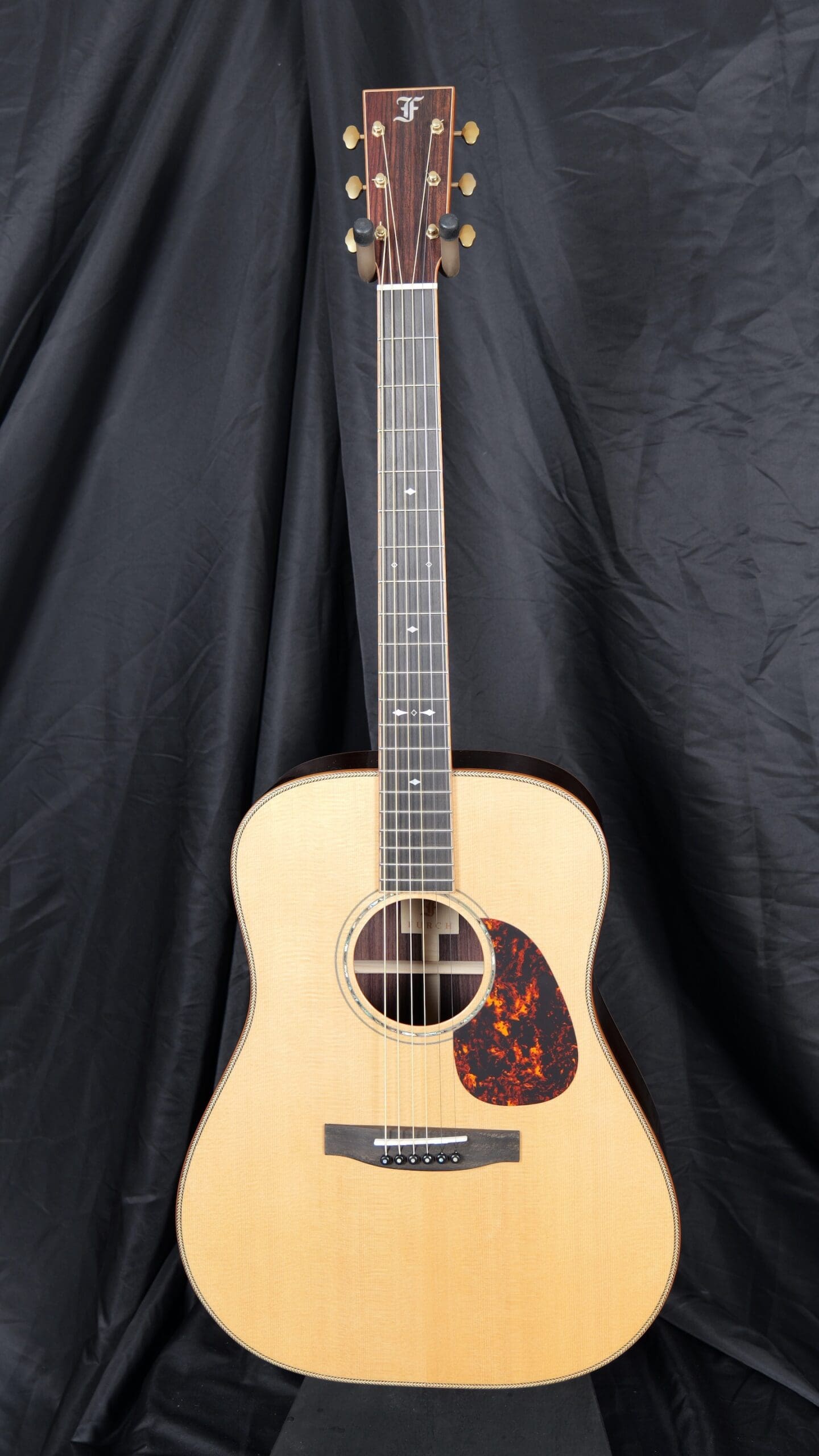

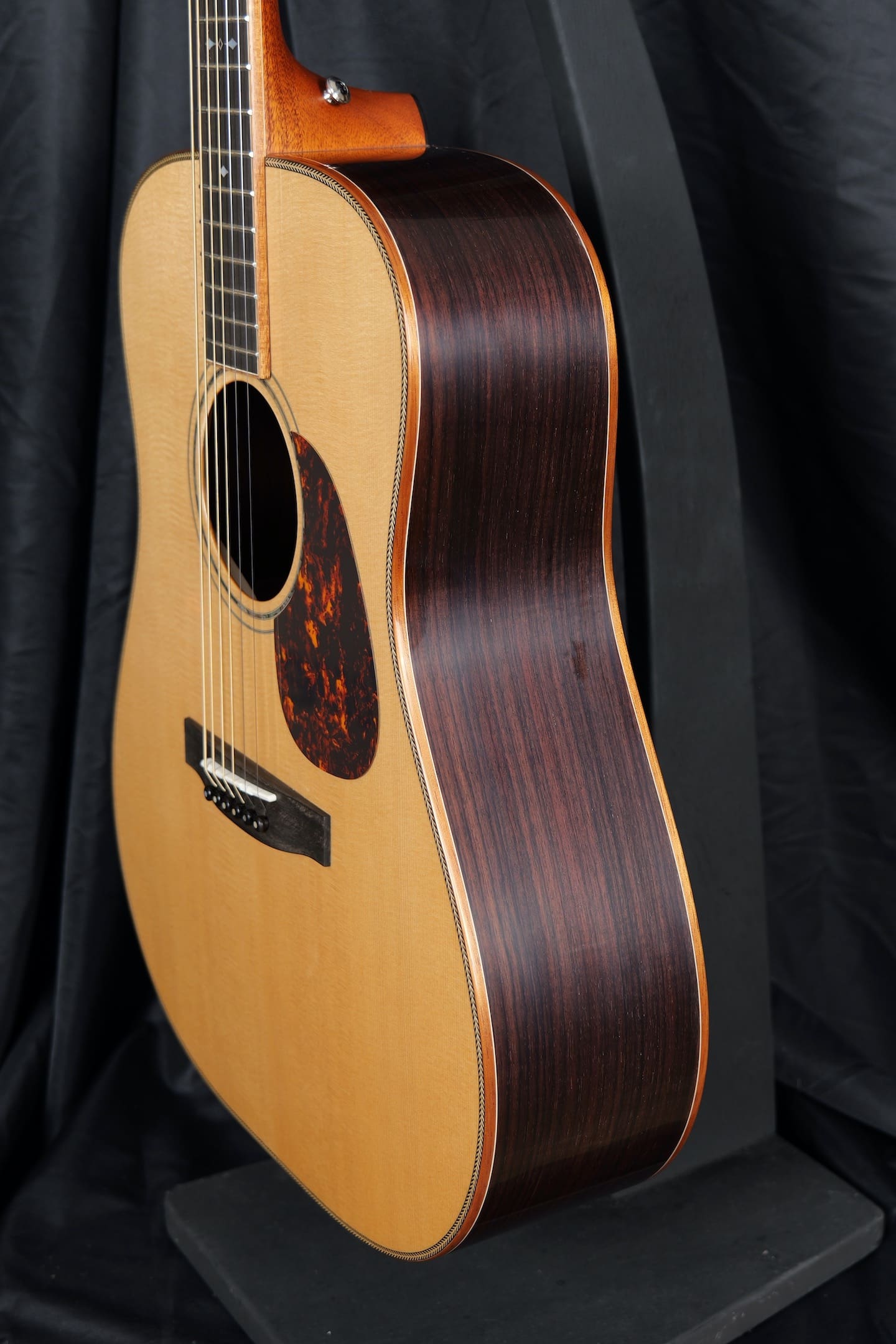

The Vintage 3 SR is the flagship of the Vintage Series. Made from the very best premium materials with meticulous attention to every last detail, the guitar not only delivers a superb sound, courtesy of soundboard voicing, but numerous appointments lend it a classy look. Like all other Vintage guitars, the Vintage 3 SR features a solid-wood construction that combines a Sitka spruce soundboard and Indian rosewood back and sides.

Specs

Body

Available body shapes D, Dc, OM, OMc, OOM, RS

Neck-to-body joint 14th fret (OOM 12th fret)

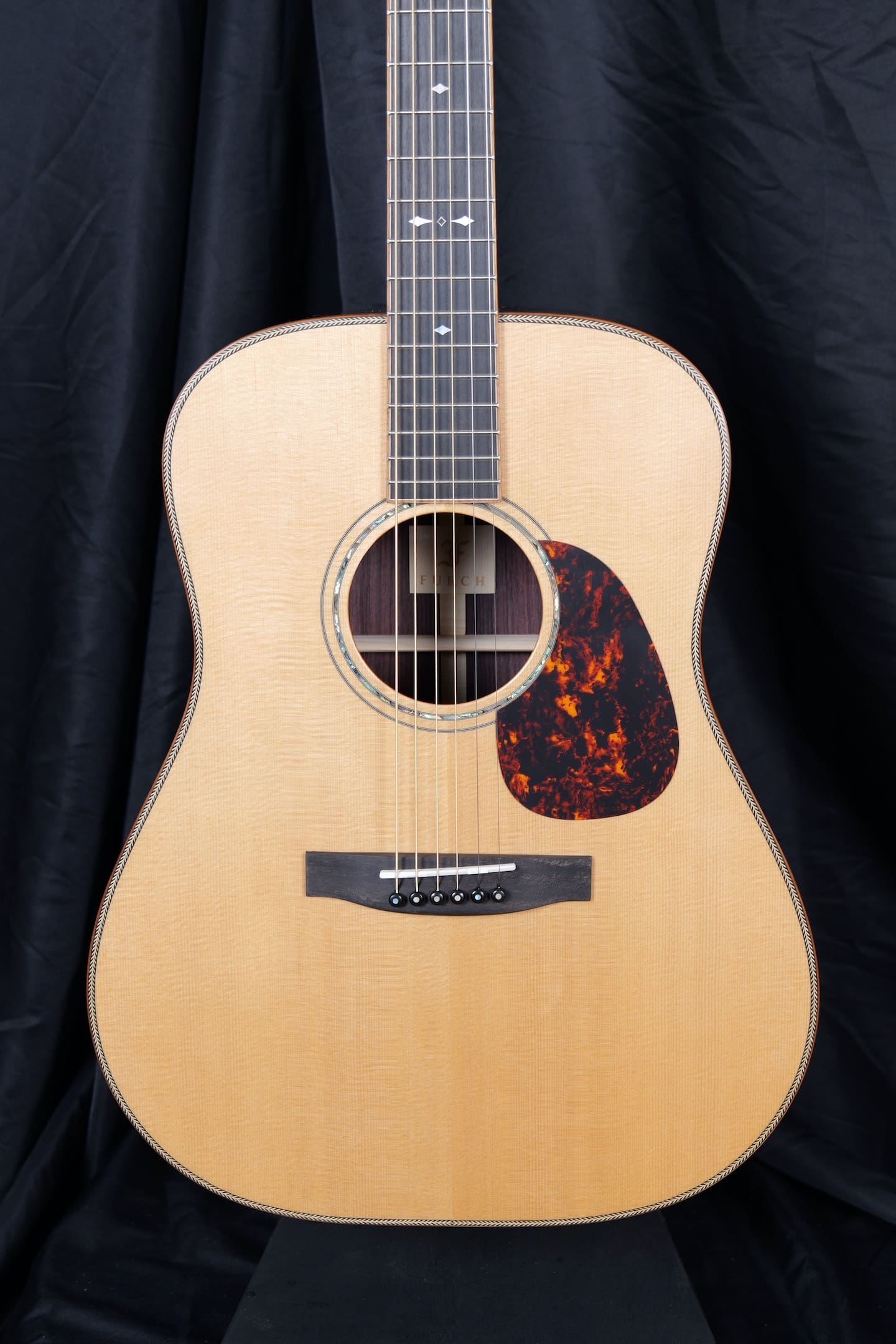

Solid top – grade Sitka spruce – master grade

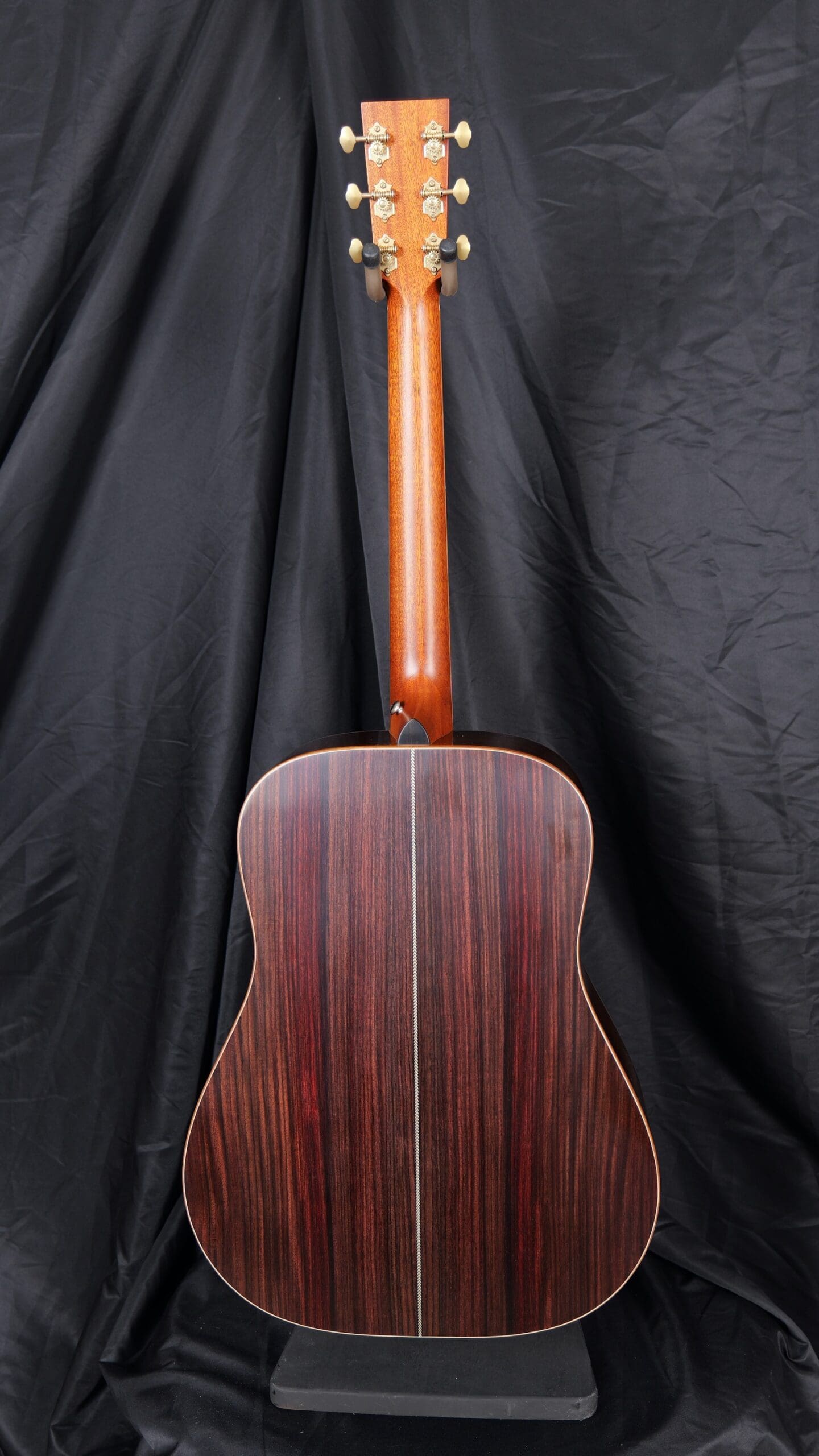

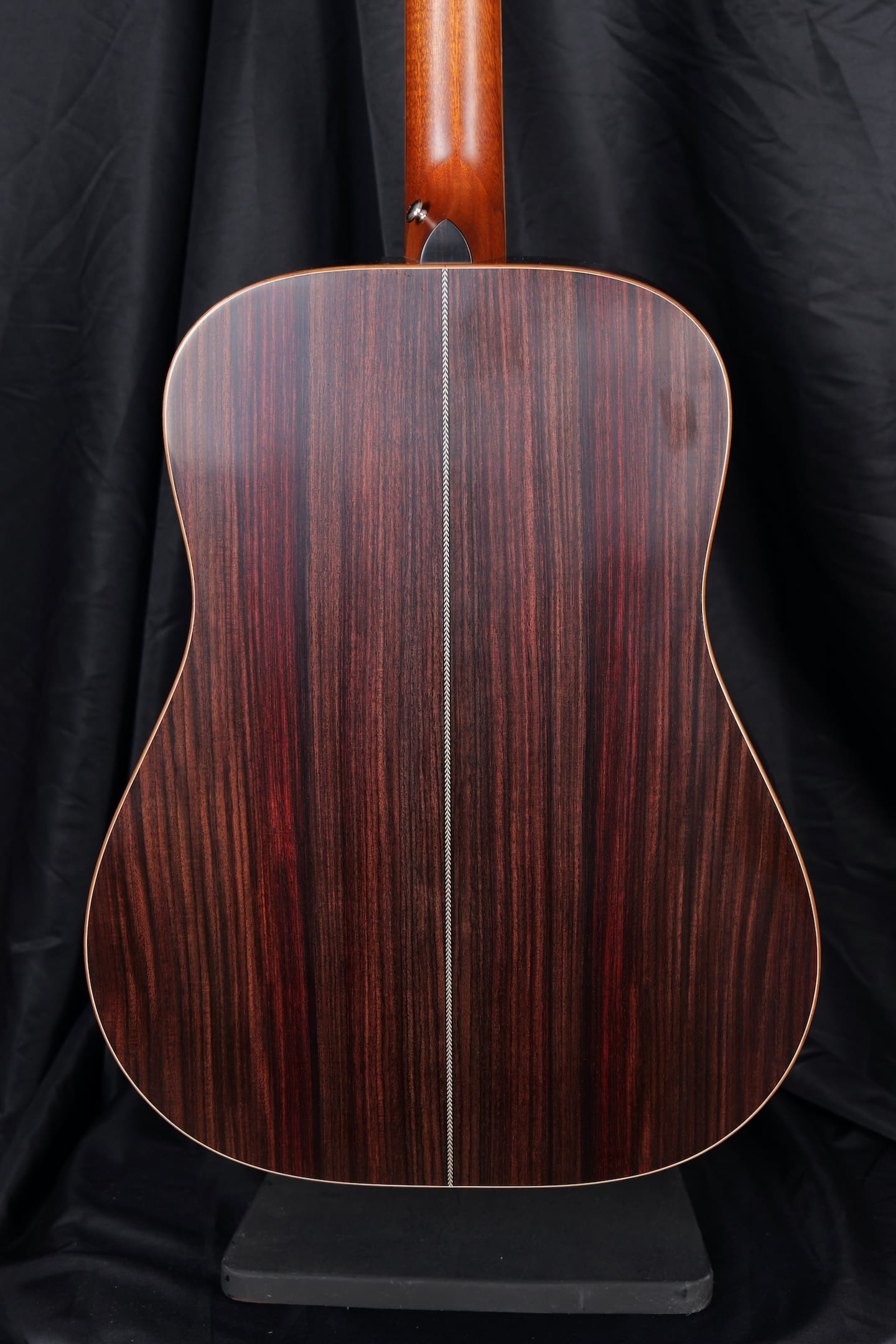

Solid back and sides – grade Indian rosewood – master grade

Binding Koa with contrasting line

Purfling Herringbone

Rosette Abalone double ring with black and white line

Bridge Ebony

Bridge pins Ebony with pearl eye

Saddle TUSQ fully compensated

Bridge string spacing 2 3/16

Top finish Full-Pore Vintage Finish

Back and sides finish Full-Pore Vintage Finish

Pickguard Faux tortoise with transparent pickguard extension towards soundhole

Neck

Nut width 1 3/4

Available nut width 1 11/16 and 1 7/8

Neck reinforcement CNR System with dual-action adjustment

Neck profile Furch Soft V

Scale length 25 9/16

Fingerboard material Ebony

Fingerboard radius 15 3/4

Fingerboard front inlay Pearl quadratic inlays

Fingerboard side inlay Pearl position dots

Fret finish Polished

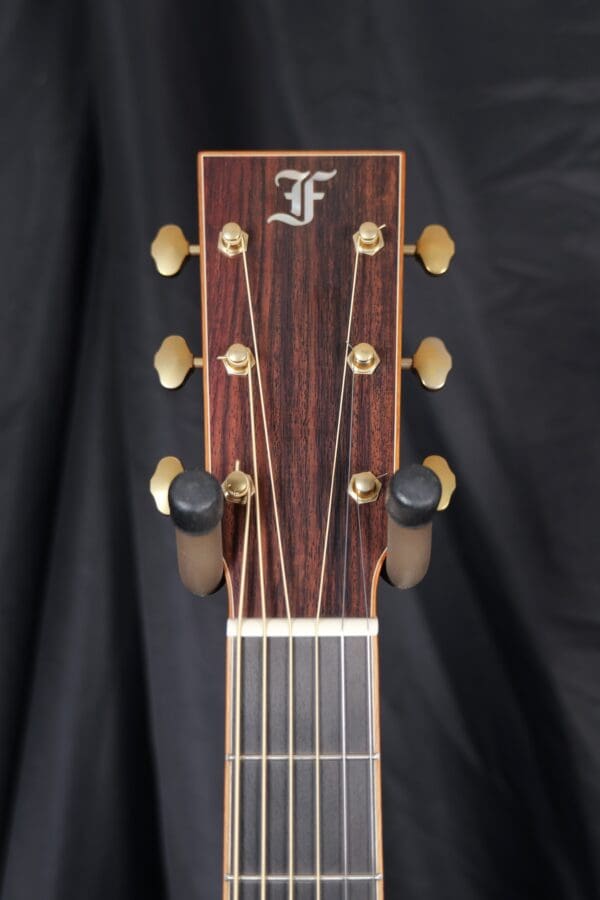

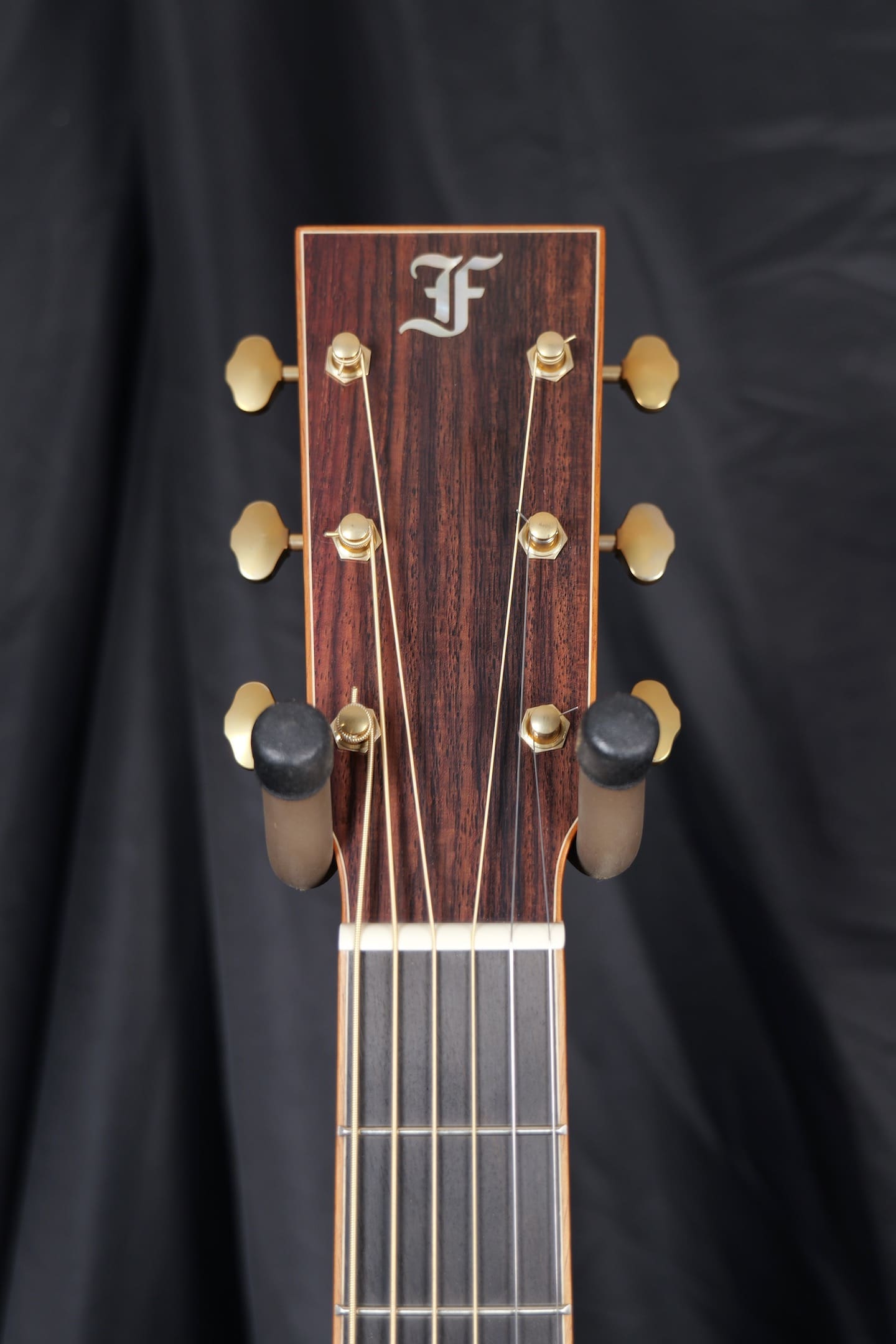

Headstock overlay Madagascar rosewood

Fingerboard and headstock binding Koa with contrasting line

Neck material African mahogany

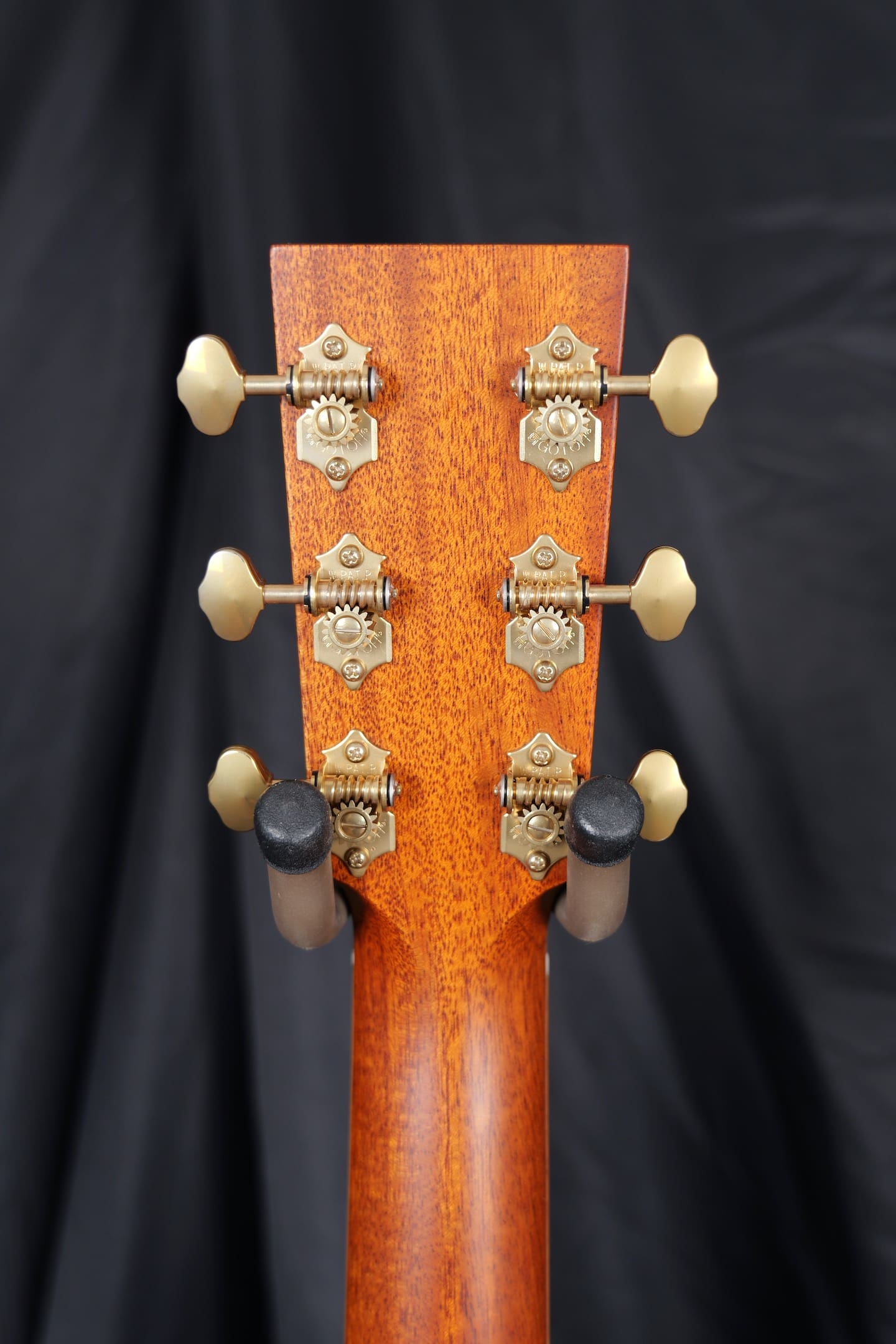

Machine heads Gotoh SE700 Gold Patina – gear ratio 1:15

Machine head buttons Gold patina

Zero fret TUSQ

Nut string spacing (1 3/4) 1 1/2

Nut string spacing (1 11/16) 1 7/16

Nut string spacing (1 7/8) 1 9/16

Strings Elixir Br Nanoweb 12-53

Neck finish Full-Pore Smooth-Slide Satin Finish with antibacterial additive

Headstock finish Full-Pore Vintage Finish
